Gruppo di continuità PowerWalkerVFI 20K CPH 3/3 20000VA 20000W modulare con Input Trifase e Output Trifase

Gruppo di continuità PowerWalkerVFI 20K CPH 3/3 20000VA 20000W modulare con Input Trifase e Output Trifase
Cod. art.: VFI20KCPH3/3
Marca: PowerWalker
EAN: 4260074982824
Codice Produttore: 10122174
Unità di misura: PZ
Peso: 225,000 Kg
Quantità:

Descrizione

Gruppo di continuità PowerWalker VFI 20K CPH 3/3 20000VA 20000W modulare con Input Trifase e Output Trifase.

PowerWalker VFI CPH 3/3 series è un UPS trifase online con un'elevata flessibilità applicativa. Con Power Factor 1.0 e alta efficienza (> 94%) soddisfa i più elevati requisiti di alimentazione.

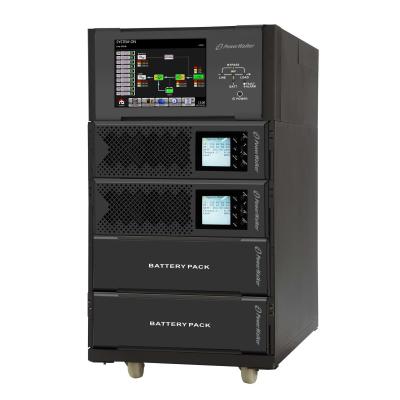

Soluzione all-inclusive con cabinet dedicato da 17U, 2 moduli da 10K, display da 10", 2 pacchi batteria e il modulo controller.
In questa configurazione modulare tutti i moduli sono sostituibili a caldo e funzionano in parallelo ridondante.
Ciò garantisce elevata affidabilità, flessibilità e facilità di manutenzione.
Il PowerWalker VFI CPH è una soluzione trifase onnicomprensiva!

General Features
Type Online Three Phase (VFI)
Phases (IN-OUT) 3-3
Form Factor Tower
Rack Units [U] 17U
Power Capacity 20000VA / 20000W
Output Power Factor 1.00
Input
Input Voltage Range 190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load
Max THDi < 5% @ full linear load
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 46Hz – 54Hz or 56Hz – 64Hz
Output
Waveform Pure Sine Wave
Nominal Output Voltage 360VAC/380VAC/400VAC/415VAC (3Ph+N)
THDv =2% Full Linear Load; =4% Non-Linear Load
Voltage Regulation (Battery Mode) ±1%
Frequency (Battery Mode) ±0,1Hz
Input & Output Connectors
Input Connector Terminal
Output Type Terminal
Terminal Output Yes
Technical Details
LINE Mode Efficiency [%] (Full Load) 94.0
Battery Mode Efficiency [%] (Full Load) 93.5
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] <10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] <10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 0ms
Load Crest Ratio 3:1
Bypass Manual – Bypass, Auto – Bypass
Additional Features Touch-Display, Output Breaker, Input Breaker, EPO – Emergency Power Off, HID – Human Interface Device, Hot-Swappable Batteries, ECO Mode Available
IEC 62040-3 classification VFI-SS-111
Batteries and Autonomy
Batteries 2.0x32x 12.0V/5.0Ah
DC Voltage 32x 12.0V
Adjustable Batteries in String 32 or 40
Charger 4A per UPS Module (adjustable)
External Battery Pack Yes
Communication
Communication Dry contact, Management Card Slot, RS-232, USB Type B – for Monitoring Software
Software ViewPower
Environment
Noise Level < 55dB
Fan Logic Always on, automatic speed control
Temperature 0°C – 40°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
Logistics
Manual Languages EN
EAN 4260074982824
Product Dimensions (DxWxH) [mm] 857 x 443 x 840 mm
Product Weight [kg] 225.0
Addtional Packaging Information

This product is aBundle Product.For theindividual packaging information please look at the followingArticle Number:

Pcs. per Outer Carton 1
Pcs. per Layer 1
Pcs. per Pallet 1
Pcs. per Pallet [Oversized] 1

Accessorio
